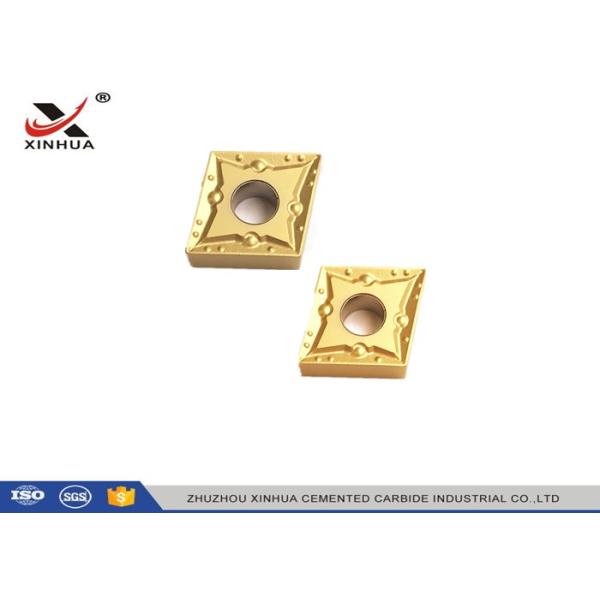

Rhombic ( C ) 80°Turning Machining Inserts CNMG120404 CNMG431 For Finishing Machining

Rhombic (C) 80° Turning Insert Cermet Insert CNMG120404-MT CNMG431 for Finishing Machining

Description:

1. 100% virgin raw material of powder for each insert to ensure you top and stable quality.

2. High technical production line to ensure delivery on time.

3. More than10,000 sets of of molds with various of types, sizes, chipbreakers and coating for customer to choice to meet customers requirements. Also we accept special design to open new mould according to customers drawings and samples.

4. Different packages :different color /brand/size of inner plastic box and outside wooden box .

5. 24 hours on line for sales and after sales service and in time technology supports.

Application:

Features of cermet inserts

Cermet grades provide long tool life and excellent surface finish, combining toughness with superior wear resistance.

Cermet Inserts are excellent for all machining applications where specifications for high surface quality, dimensional stability and tight tolerances must be adhered to. They guarantee long tool life with small to medium chip cross sections and uniform allowances, and are ideal for fine finishing, finishing and rough finishing of steel, sintered metal and ductile cast iron.It has a reinforced structure that provides excellent chipping resistance, reducing the wear on the insert and preventing sudden fracture.

PVD-coated cermet has high abrasion resistance and fracture resistance thanks to the use of the PVD coating technology (Physical Vapor Deposition) on a basis material of micro-grain carbide.

The substrate is coated by the PVD method with TiN, TiCN, and/or TiAlN. The end results are materials that are suitable for precision machining and machining of difficult-to-cut materials. Inserts in these grades are tougher and harder than carbide and come with precision sharp cutting edges. They even have superior toughness and sharper cutting edges than ultra micro-grain carbide grades, with excellent wear resistance and thermal crack resistance.

Rhombic (C) 80° Turning Inserts Providing the best balance of cutting-edge strength and operational versatility of all the insert shapes, these rhombic inserts have an 80° point angle and are a good choice for a wide range of longitudinal turning applications. With a cutting edge that is stronger than a trigon insert but less strong than a square insert, they are recommended for facing, roughing, light roughing, and semi-finishing applications.

Insert shapes are available with a range of point angles. In general, inserts with a large point angle have a stronger cutting edge but produce more vibration and require more machine power than inserts with a small point angle. Inserts with a small point angle are more versatile, provide better accessibility for detailed cutting, produce less vibration, and require less machine power than inserts with a large point angle, but they have a weaker cutting edge and may be more prone to heat damage.

Inserts are available with a negative or positive basic shape. Negative inserts have a 0° clearance angle. They provide good edge strength and are recommended for external turning and heavy cutting applications. Double-sided negative inserts offer twice as many cutting edges as positive inserts, but single-sided negative inserts provide the best stability in heavy roughing applications. Positive inserts have a clearance angle that is greater than 0° and are a good choice for internal turning applications and external turning applications on slender workpieces. Positive inserts are single sided and produce lower cutting forces than negative inserts.

Specification:

wood lathe carbide inserts

machining inserts

Rhombic ( C ) 80°Turning Machining Inserts CNMG120404 CNMG431 For Finishing Machining Images
