RS Profiling Carbide Turning Inserts KNUX160405R / L - 11 Lathe Tool Inserts

Zhuzhou XinHua Cemented Carbide Co., Ltd.
Contact Now

RS Profiling Carbide Turning Inserts KNUX160405R / L - 11 Lathe Tool Inserts

  • 1
  • 2
  • 3

Brand Name : LiFA

Model Number : KNUX160405R-11

Certification : ISO9001-2008

Place of Origin : zhuzhou China

MOQ : 10PCS

Price : Negociated

Payment Terms : T/T,Western union

Supply Ability : 3000pcs/month

Delivery Time : 15-20days

Packaging Details : 10PCS in a plastic box

Material : Tungsten Carbide

Grade : YBC251/ YBC351

Coating : CVD Coating

Feature : 55°Parallelogram

Usage : External Turning Inserts

Packaging : 10 pcs / box

Contact Now

RS Profiling Carbide Turning Insert KNUX160405R/L-11 Lathe Tool Insert

Description:

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on 45steel, cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Product features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Multi Layer coating TiC/Al2O3/TiN
  • Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting
  • Use for slotting and slab or straddle milling

Application:

Insert Width: .188
Corner Radius: .020
Through Hole: N/A
Chipbreaker Width: .086 x 12 degree
Right Hand
55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge.

KNUX single sided insert with Chipbreaker. Clamp on insert. 12 degree positive cutting action. 0 degree relief angle. For general purpose milling & turning carbon and alloy steels, tool steels.

Carbide Grades:
  • Uncoated grade used primarily in mild cutting conditions. Used for turning and milling steel, cast iron and other non-ferrous metals.
  • For roughing to semi-finishing of Steel.
  • Multi Layer CVD (TiC/Al203/TiN) Aluminum Oxide Coated. Ideal for machining 200 and 300 series stainless steel, cast irons, non-ferrous alloys and most high temperature alloys. Excellent wear resistance.
  • Multi Layer CVD (TiN/TiC/TiCN/TiN) coating. Best for general purpose milling and turning carbon and alloy steels and tool steels.

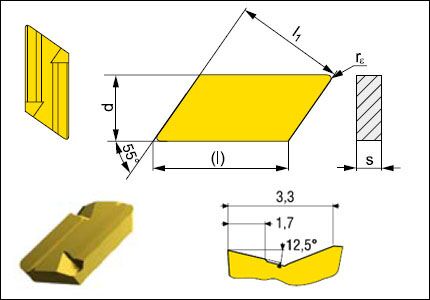

Specification:

  • 55° Parallelogram insert
  • Single sided
  • Positive rake
  • 16mm cutting edge
  • Available in left or right hand
item name KNUX160405R/L-11
Place of Origin Zhuzhou
Model Number various
Workpiece Steel
Application Turning
Color Gold
Hardness various
Coating CVD Coated
Material Tungsten Carbide

RS Profiling Carbide Turning Inserts KNUX160405R / L - 11 Lathe Tool Inserts

RS Profiling Carbide Turning Inserts KNUX160405R / L - 11 Lathe Tool Inserts
