Multilayer Coated Tungsten Carbide Cutting Inserts Turning Tool WNMG080408 - PM

Product Categories
Zhuzhou XinHua Cemented Carbide Co., Ltd.
Contact Now

Multilayer Coated Tungsten Carbide Cutting Inserts Turning Tool WNMG080408 - PM

Brand Name : LIFA

Model Number : WNMG080408

Certification : ISO9001-2008

Place of Origin : ZHUZHOU CHINA

MOQ : 10PCS

Price : Dollar 1-2 USD

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS Per month

Delivery Time : 5-15days

Packaging Details : 10pcs for per plastic

Cut type : Semi-finishing and finishing

Chip breaker : PM

Size : Nomal

Material : Cementd carbide

Grade : YBC251/252

HRA : 91

Contact Now

Tungsten Carbide Turning Insert Turning Tool WNMG080408-PM(10Pcs/Lot), Multilayer Coated

Description

Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems

Carbide substrate form by special crystal structure to increase the rigidness of the core base and thermal stability at high temperature

PM: Recommended chipbreaker for semi-finishing of P-type materials.

Turning insert: WNMG080408-PM chipbreaker: -PM; Grade: YBC251, Coating color: Golden; Suitable working material: Steel

Suit for: Semi-finishing,finishing, Material: solid carbide, Quantity: 10pcs/pack

Application

YBC251: The Substrate with Good Toughness and High Security of Cutting Edge, in Optimal Combination with Coating Composed of MT-TiCN, Thick Layer of AL2O3 and TiN makes it

suitable for Steel Semi-finishing.

Material: solid carbide,

Quantity: 10pcs/pack.

Suitable working material: Stainless steel.

Specification

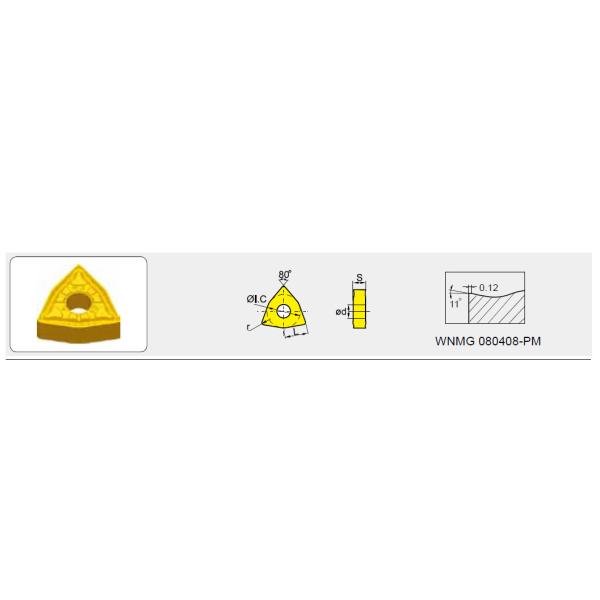

WNMG080408-PM

Multilayer Coated Tungsten Carbide Cutting Inserts Turning Tool WNMG080408 - PM

Specification Dimension(mm)
L øI.C S øD R
WNMG060408-PM 6.5 9.525 4.76 3.51 0.8
WNMG080408-PM 8.7 12.7 4.76 5.16 0.8

Multilayer Coated Tungsten Carbide Cutting Inserts Turning Tool WNMG080408 - PM
